| DEC DIA |
DIA. WIRE OR MM |
FLUTE LENGTH INCH |
FLUTE LENGTH INCH |
FLUTE LGTH INCH |
OAL | SHK DIA |
PT ANG |
SINGLE PC PRICE US $ |
10 PC PRICE US $ |
50 PC PRICE US $ |
IMAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|

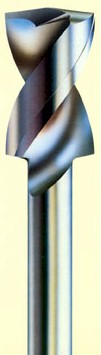

| .1590 | #21 | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 |  |
| .1594 | 4.05MM | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1610 | #20 | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1614 | 4.10MM | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1634 | 4.15MM | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1654 | 4.20MM | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1660 | #19 | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1673 | 4.25MM | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1693 | 4.30MM | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1695 | #18 | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1713 | 4.35MM | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1719 | 11/64" | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1730 | #17 | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 | |
| .1732 | 4.40MM | . | . | .515" | 1-1/2" | 1/8" | 165% | $6.75 | $4.85 | $4.85 |
| Drill Specifications and Dimensions | |
|---|---|
| Overall Length: | (OAL) 1 1/2" (38MM) |
| Shank Diameter: | 1/8" (3.175MM) |
| Drill Point Angle: | 130 Degrees for Sizes #80(.0135") to 1/8" (.1250") |
| Drill Point Angle: | 165 Degrees for Sizes 3.20MM(.1260") to 3/8" (.3750") |
| Additional Point Angles Available: | 90 Deg; 110 Deg; 118 Deg; 135 Deg; 150 Deg etc |
| Material: | Solid Sub Micro Grain Carbide |
| Specials?: | Yes, We will do Specials: Ask Us! |
| Don't See Your Flute Length, Diameter, Point Angle? | Email us at: sales@drilltechnology.com Chances are We have it |
| More Questions?? | Email us at: sales@drilltechnology.com |
