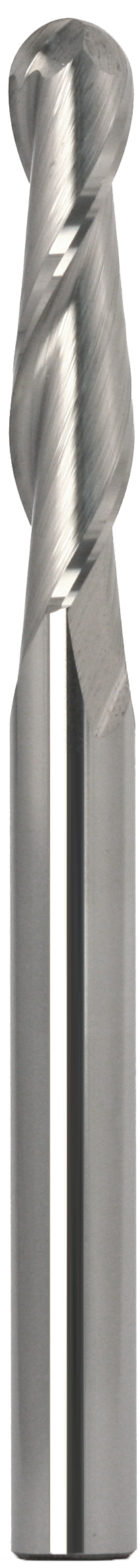

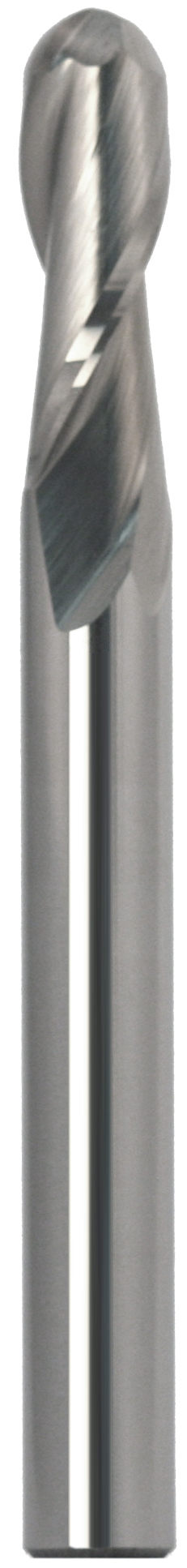

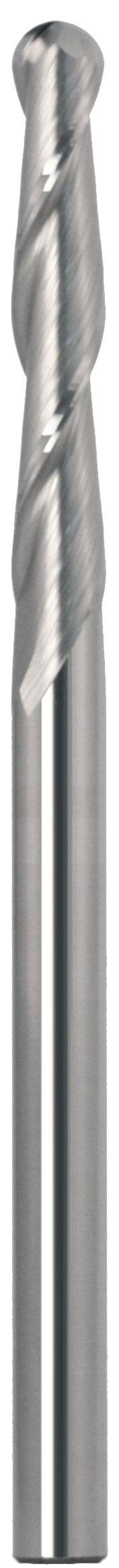

| DRILL TECHNOLOGY ALL FRACTIONAL 2 FLUTE BALL NOSE ENDMILLS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Note on Inventory and Delivery: Not All 2
Flute Ball Nose Endmills are in stock; especially the sizes over 1/8" diameter. Deliveries can be delayed due to stock outs |
||||||||||||
|
MODEL NUMBER |
CUT DIA |
CUT DIA |
DIA TOL |
HELIX ANGLE |
MARGIN RELIEF |
SHNK DIA |
SHNK TOL |
FLUTE LENGTH |
OVERALL LENGTH |
LIST PRICE |
YOUR PRICE |
IMAGE |
| (INCH) | FRAC | INCH | (INCH) | (INCH) | (INCH) | US$ | US$ |
|
||||
| EM2B-0156-0230-B | 0.0156 | 1/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.0230 | 1-1/2" | $36.29 | $19.96 | |
| EM2B-0156-0234 | 0.0156 | 1/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.0234 | 1 1/2" | $36.29 | $19.96 | |
| EM2B-0156-0312 | 0.0156 | 1/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.0312 | 1 1/2" | $28.17 | $15.49 | |
| EM2B-0156-0469 | 0.0156 | 1/64" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.0469 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0156-0625 | 0.0156 | 1/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.0625 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0156-0938 | 0.0156 | 1/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.0938 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0312-0625 | 0.0312 | 1/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.0625 | 1 1/2" | $17.35 | $9.54 | |
| EM2B-0312-0625-B | 0.0312 | 1/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.0625 | 1-1/2" | $17.35 | $9.54 | |
| EM2B-0312-0938 | 0.0312 | 1/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.0938 | 1 1/2" | $17.69 | $9.73 | |
| EM2B-0312-1250 | 0.0312 | 1/32" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1250 | 1 1/2" | $17.69 | $9.73 | |
| EM2B-0312-1406 | 0.0312 | 1/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1406 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0312-1562 | 0.0312 | 1/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1562 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0312-1875 | 0.0312 | 1/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0312-2500 | 0.0312 | 1/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0312-3750 | 0.0312 | 1/32" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0312-5000 | 0.0312 | 1/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0469-0938 | 0.0469 | 3/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.0938 | 1 1/2" | $17.35 | $9.54 | |
| EM2B-0469-0938-B | 0.0469 | 3/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.0938 | 1-1/2" | $17.35 | $9.54 | |
| EM2B-0469-1250 | 0.0469 | 3/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1250 | 1 1/2" | $17.69 | $9.73 | |
| EM2B-0469-1410- | 0.0469 | 3/64" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1410 | 1 1/2" | NA | NA | |
| EM2B-0469-1875 | 0.0469 | 3/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1 1/2" | $17.69 | $9.73 | |
| EM2B-0469-2500 | 0.0469 | 3/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0469-3750 | 0.0469 | 3/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0469-4000 | 0.0469 | 3/64" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.4000 | 1 1/2" | $47.64 | $26.20 |
|
| EM2B-0469-5000 | 0.0469 | 3/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0625-1250 | 0.0625 | 1/16" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1250 | 1 1/2" | $17.35 | $9.54 | |
| EM2B-0625-1250-B | 0.0625 | 1/16" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1250 | 1-1/2" | $17.35 | $9.54 | |
| EM2B-0625-1875 | 0.0625 | 1/16" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1 1/2" | $17.69 | $9.73 | |
| EM2B-0625-2500 | 0.0625 | 1/16" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1 1/2" | $17.69 | $9.73 | |
| EM2B-0625-3125 | 0.0625 | 1/16" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3125 | 1 1/2" | $27.30 | $15.02 | |
| EM2B-0625-3500 | 0.0625 | 1/16" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3500 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0625-3750 | 0.0625 | 1/16" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0625-5000 | 0.0625 | 1/16" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0625-6250 | 0.0625 | 1/16" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1 1/2" | $54.78 | $30.13 | |
| EM2B-0781-1250 | 0.0781 | 5/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1250 | 1 1/2" | $17.35 | $9.54 | |
| EM2B-0781-1250-B | 0.0781 | 5/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1250 | 1-1/2" | $17.35 | $9.54 | |
| EM2B-0781-1562 | 0.0781 | 5/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1562 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0781-1875 | 0.0781 | 5/64" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0781-2500 | 0.0781 | 5/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1 1/2" | $17.69 | $9.73 | |
| EM2B-0781-3125 | 0.0781 | 5/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3125 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0781-3750 | 0.0781 | 5/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0781-5000 | 0.0781 | 5/64" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0781-5500 | 0.0781 | 5/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.5500 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0938-1875 | 0.0938 | 3/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1 1/2" | $17.35 | $9.54 | |
| EM2B-0938-1875-B | 0.0938 | 3/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1-1/2" | $17.35 | $9.54 | |
| EM2B-0938-2500 | 0.0938 | 3/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1 1/2" | $27.30 | $15.02 | |
| EM2B-0938-2813 | 0.0938 | 3/32" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.2813 | 1 1/2" | $17.69 | $9.73 |
|
| EM2B-0938-3125 | 0.0938 | 3/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3125 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0938-3750 | 0.0938 | 3/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1 1/2" | $17.69 | $9.73 | |
| EM2B-0938-5000 | 0.0938 | 3/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0938-6250 | 0.0938 | 3/32" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.6250 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-0938-7500-2.25 | 0.0938 | 3/32" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.7500 | 2-1/4" | $30.67 | $16.87 | |
| EM2B-1094-1875-B | 0.1094 | 7/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1 1/2" | $17.35 | $9.54 | |
| EM2B-1094-2188-B | 0.1094 | 7/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.2188 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-1094-3750 | 0.1094 | 7/64" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1 1/2" | $17.69 | $9.73 | |
| EM2B-1094-5000-B | 0.1094 | 7/64" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-1250-1875-B | 0.1250 | 1/8" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1 1/2" | $17.69 | $9.73 | |
| EM2B-1250-2500-B | 0.1250 | 1/8" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1 1/2" | $17.35 | $9.54 | |
| EM2B-1250-2500 | 0.1250 | 1/8" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1-1/2" | $17.35 | $9.54 | |
| EM2B-1250-3125-B | 0.1250 | 1/8" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3125 | 1 1/2" | $27.30 | $15.02 | |
| EM2B-1250-3750-B | 0.1250 | 1/8" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1 1/2" | $15.07 | $8.29 | |
| EM2B-1250-5000-B | 0.1250 | 1/8" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1 1/2" | $15.07 | $8.29 | |
| EM2B-1250-5625-B | 0.1250 | 1/8" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.5625 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-1250-6250-B | 0.1250 | 1/8" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.5625 | 1 1/2" | $47.64 | $26.20 | |
| EM2B-1250-7500-2.25 | 0.1250 | 1/8" | ++0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 0.7500 | 2-1/4" | $30.67 | $16.87 | |
| EM2B-1250-1.0-3.0 | 0.1250 | 1/8" | +0.0003" / -.0003" | 30 DEG | YES | 1/8" | h5 | 1.0000 | 3.0" | $36.97 | $20.33 | |
| EM2B-1406-5625- | 0.1406 | 9/64" | +0.0" / -.001" | 30 DEG | YES | 3/16" | h6 | 0.5625 | 2.0" | $24.71 | ||
| EM2B-1563-3125-2.0 | 0.1563 | 5/32" | +0.0" / -.001" | 30 DEG | YES | 3/16" | h6 | 0.3125 | 2.0" | $22.33 | $12.28 | |
| EM2B-1563-3750-B | 0.1563 | 5/32" | +0.0" / -.001" | 30 DEG | YES | 3/16" | h6 | 0.3750 | 2.0" | $48.54 | $26.70 | |
| EM2B-1563-5625- | 0.1563 | 5/32" | +0.0" / -.001" | 30 DEG | YES | 3/16" | h6 | 0.5625 | 2.0" | $24.71 | ||
| EM2B-1563-6250-B | 0.1563 | 5/32" | +0.0" / -.001" | 30 DEG | YES | 3/16" | h6 | 0.6250 | 2.0" | $48.54 | $26.70 |
|
| EM2B-1719-3125-2.0 | 0.1719 | 11/64" | +0.0" / -.001" | 30 DEG | YES | 3/16" | h6 | 0.3125 | 2.0" | $22.33 | $12.28 | |
| EM2B-1719-6250- | 0.1719 | 11/64" | +0.0" / -.001" | 30 DEG | YES | 3/16" | h6 | 0.6250 | 2.0" | $21.80 | $11.99 | |
| EM2B-1875-3750-2.0 | 0.1875 | 3/16" | +0.0" / -.002" | 30 DEG | YES | 3/16" | h6 | 0.3750 | 2.0" | $22.33 | $12.28 | |
| EM2B-1875-6250- | 0.1875 | 3/16" | +0.0" / -.002" | 30 DEG | YES | 3/16" | h6 | 0.6250 | 2.0" | $21.80 | $11.99 | |
| EM2B-1875-7500-2.50 | 0.1875 | 3/16" | +0.0" / -.002" | 30 DEG | YES | 3/16" | h6 | 0.7500 | 2-1/2" | $34.75 | $19.11 | |
| EM2B-1875-1.125-3.0 | 0.1875 | 3/16" | +0.0" / -.002" | 30 DEG | YES | 3/16" | h6 | 1.1250 | 3.0" | $41.73 | $22.95 | |
| EM2B-2031-6250- | 0.2031 | 13-64" | +0.0" / -.001" | 30 DEG | YES | 1/4" | h6 | 0.6250 | 2-1/2" | $26.55 | $14.60 | |
| EM2B-2188-4375-2.0 | 0.2188 | 7/32" | +0.0" / -.001" | 30 DEG | YES | 1/4" | h6 | 0.4375 | 2.0" | $25.48 | $14.01 | |
| EM2B-2188-6250- | 0.2188 | 7/32" | +0.0" / -.001" | 30 DEG | YES | 1/4" | h6 | 0.6250 | 2-1/2" | $26.55 | $14.60 | |
| EM2B-2344-7500 | 0.2344 | 15/64" | +0.0" / -.001" | 30 DEG | YES | 1/4" | h6 | 0.7500 | 2-1/2" | $27.90 | $15.35 | |
| EM2B-2500-5000-2.0 | 0.2500 | 1/4" | +0.0" / -.002" | 30 DEG | YES | 1/4" | h6 | 0.5000 | 2.0" | $25.48 | $14.01 | |
| EM2B-2500-7500 | 0.2500 | 1/4" | +0.0" / -.002" | 30 DEG | YES | 1/4" | h6 | 0.7500 | 2-1/2" | $27.90 | $15.35 | |
| EM2B-2500-1.125-3.0 | 0.2500 | 1/4" | +0.0" / -.002" | 30 DEG | YES | 1/4" | h6 | 1.1250 | 3.0" | $43.09 | $23.70 | |
| EM2B-2500-1.50-4.0 | 0.2500 | 1/4" | +0.0" / -.002" | 30 DEG | YES | 1/4" | h6 | 1.5000 | 4.0" | $51.69 | $28.43 | |
| EM2B-2500-1.5-6.0 | 0.2500 | 1/4" | +0.0" / -.002" | 30 DEG | YES | 1/4" | h6 | 1.5000 | 6.0" | $67.20 | $36.96 | |
| EM2B-2656-7500 | 0.2656 | 17/64" | +0.0" / -.001" | 30 DEG | YES | 5/16" | h6 | 0.7500 | 2-1/2" | $30.20 | $16.61 | |
| EM2B-2813-7500 | 0.2813 | 9/32" | +0.0" / -.001" | 30 DEG | YES | 5/16" | h6 | 0.7500 | 2-1/2" | $30.20 | $16.61 | |
| EM2B-2969-8125 | 0.2969 | 19/64" | +0.0" / -.001" | 30 DEG | YES | 5/16" | h6 | 0.8125 | 2-1/2" | $31.45 | $17.30 | |
| +0.0" / -.001" | ||||||||||||
| EM2B-3125-5000-2.0 | 0.3125 | 5/16" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 0.5000 | 2.0" | $34.13 | $18.77 | |
| EM2B-3125-8125 | 0.3125 | 5/16" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 0.8125 | 2-1/2" | $31.45 | $17.30 | |
| EM2B-3125-1.125-3.0 | 0.3125 | 5/16" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 1.1250 | 3.0" | $58.46 | $32.15 | |
| EM2B-3125-1.5-6.0 | 0.3125 | 5/16" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 1.5000 | 6.0" | $91.17 | $50.14 | |
| EM2B-3125--1.625-4.0 | 0.3125 | 5/16" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 1.6250 | 4.0" | $69.16 | $38.04 | |
| EM2B-3125-3.0-6.0 | 0.3125 | 5/16" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 3.0000 | 6.0" | $116.92 | $64.31 | |
| EM2B-3281-1000 | 0.3281 | 21/64" | +0.0" / -.001" | 30 DEG | YES | 3/8" | h6 | 1.0000 | 2-1/2" | $39.75 | $21.86 | |
| EM2B-3438-1.000 | 0.3438 | 11/32" | +0.0" / -.001" | 30 DEG | YES | 3/8" | h6 | 1.0000 | 2-1/2" | $39.75 | $21.86 | |
| EM2B-3594-1.000 | 0.3594 | 23/64" | +0.0" / -.001" | 30 DEG | YES | 3/8" | h6 | 1.0000 | 2-1/2" | $39.75 | $21.86 | |
| EM2B-3750-6250-2.0 | 0.3750 | 3/8" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 0.6250 | 2.0" | $45.13 | $24.82 | |
| EM2B-3750-1.000 | 0.3750 | 3/8" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 1.0000 | 2-1/2" | $39.75 | $21.86 | |
| EM2B-3750-1.125-3.0 | 0.3750 | 3/8" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 1.1250 | 3.0" | $74.10 | $40.76 | |
| EM2B-3750-1.75-4.0 | 0.3750 | 3/8" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 1.7500 | 4.0" | $95.98 | $52.79 |
|
| EM2B-3750-3.0-6.0 | 0.3750 | 3/8" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 3.0000 | 6.0" | $124.77 | $68.62 | |
| EM2B-3906-1.000 | 0.3906 | 25/64" | +0.0" / -.001" | 30 DEG | YES | 5/16" | h6 | 1.0000 | 2-3/4" | $58.45 | $32.15 | |
| EM2B-4063-1.000 | 0.4063 | 13/32" | +0.0" / -.001" | 30 DEG | YES | 5/16" | h6 | 1.0000 | 2-3/4" | $58.45 | $32.15 | |
| EM2B-4219-1.000 | 0.4219 | 27/64" | +0.0" / -.001" | 30 DEG | YES | 5/16" | h6 | 1.0000 | 2-3/4" | $58.45 | $32.15 | |
| EM2B-4375-625-2.5 | 0.4375 | 7/16" | +0.0" / -.002" | 30 DEG | YES | 5/16" | h6 | 0.6250 | 2-1/2" | $62.29 | $34.26 | |
| EM2B-4375-1.000 | 0.4375 | 7/16" | +0.0" / -.002" | 30 DEG | YES | 7/16" | h6 | 1.0000 | 2-3/4" | $58.45 | $32.15 | |
| EM2B-4375-2.0-4.0 | 0.4375 | 7/16" | +0.0" / -.002" | 30 DEG | YES | 7/16" | h6 | 2.0000 | 4.0" | $129.15 | $71.03 | |
| EM2B-4375-3.0-6.0 | 0.4375 | 7/16" | +0.0" / -.002" | 30 DEG | YES | 7/16" | h6 | 3.0000 | 6.0" | $185.25 | $101.89 | |
| EM2B-4531-1.000 | 0.4531 | 29/64" | +0.0" / -.001" | 30 DEG | YES | 1/2" | h6 | 1.0000 | 3.0" | $67.85 | $37.32 | |
| EM2B-4688-1.000 | 0.4688 | 15/32" | +0.0" / -.001" | 30 DEG | YES | 1/2" | h6 | 1.0000 | 3.0" | $67.85 | $37.32 | |
| EM2B-4844-1.000 | 0.4844 | 31/64" | +0.0" / -.001" | 30 DEG | YES | 1/2" | h6 | 1.0000 | 3.0" | $67.85 | $37.32 | |
| EM2B-5000-6250-2.5 | 0.5000 | 1/2" | +0.0" / -.002" | 30 DEG | YES | 1/2" | h6 | 0.6250 | 2-1/2" | $81.81 | $45.00 | |
| EM2B-5000-1.000 | 0.5000 | 1/2" | +0.0" / -.002" | 30 DEG | YES | 1/2" | h6 | 1.0000 | 3.0" | $67.85 | $37.32 | |
| EM2B-5000-2.0-4.0 | 0.5000 | 1/2" | +0.0" / -.002" | 30 DEG | YES | 1/2" | h6 | 2.0000 | 4.0" | $146.81 | $80.75 | |
| EM2B-5000-3.0-6.0 | 0.5000 | 1/2" | +0.0" / -.002" | 30 DEG | YES | 1/2" | h6 | 3.0000 | 6.0" | $243.37 | $133.85 | |
| EM2B-5625-1.125 | 0.5625 | 9/16" | +0.0" / -.002" | 30 DEG | YES | 9/16" | h6 | 1.1250 | 3-1/2" | $115.00 | $63.25 | |
| EM2B-5625-3.0-6.0 | 0.5625 | 9/16" | +0.0" / -.002" | 30 DEG | YES | 9/16" | h6 | 3.0000 | 6.0" | $360.46 | $198.25 | |
| EM2B-6250-7500-3.0 | 0.6250 | 5/8" | +0.0" / -.001" | 30 DEG | YES | 3/4" | h6 | 0.7500 | 3.0" | $178.15 | $97.98 | |
| EM2B-6250-1.250 | 0.6250 | 5/8" | +0.0" / -.002" | 30 DEG | YES | 5/8" | h6 | 1.2500 | 3-1/2" | $128.70 | $70.79 | |
| EM2B-6250-2.25-5.0 | 0.6250 | 5/8" | +0.0" / -.002" | 30 DEG | YES | 5/8" | h6 | 2.2500 | 5.0" | $128.70 | $70.79 | |
| EM2B-6250-3.0-6.0 | 0.6250 | 5/8" | +0.0" / -.002" | 30 DEG | YES | 5/8" | h6 | 3.0000 | 6.0" | $274.98 | $151.24 | |
| EM2B-6875-1.375 | 0.6875 | 11/16" | +0.0" / -.001" | 30 DEG | YES | 3/4" | h6 | 1.3750 | 4.0" | $190.00 | $104.50 | |
| EM2B-7500-1.0-3.0 | 0.7500 | 3/4" | +0.0" / -.001" | 30 DEG | YES | 1.0" | h6 | 1.0000 | 3.0" | $261.78 | $143.98 | |
| EM2B-7500-1.500 | 0.7500 | 3/4" | +0.0" / -.002" | 30 DEG | YES | 3/4" | h6 | 1.5000 | 4.0" | $190.00 | $104.50 | |
| EM2B-7500-2.25-5.0 | 0.7500 | 3/4" | +0.0" / -.002" | 30 DEG | YES | 3/4" | h6 | 2.2500 | 5.0" | $356.20 | $195.91 | |
| EM2B-7500-3.0-6.0 | 0.7500 | 3/4" | +0.0" / -.002" | 30 DEG | YES | 3/4" | h6 | 3.0000 | 6.0" | $500.93 | $275.51 | |
| EM2B-8750-1.500 | 0.8750 | 7/8" | +0.0" / -.002" | 30 DEG | YES | 7/8" | h6 | 1.5000 | 4.0" | $328.95 | $180.92 | |
| EM2B-8750-2.25-5.0 | 0.8750 | 7/8" | +0.0" / -.002" | 30 DEG | YES | 7/8" | h6 | 2.2500 | 5.0" | $678.13 | $372.97 | |
| EM2B-8750-3.0-6.0 | 0.8750 | 7/8" | +0.0" / -.002" | 30 DEG | YES | 7/8" | h6 | 3.0000 | 6.0" | $759.89 | $417.94 | |
| EM2B-1.000-1.00-3.0 | 1.0000 | 1.0" | +0.0" / -.002" | 30 DEG | YES | 1.0" | h6 | 1.0000 | 3.0" | $464.09 | $255.25 | |
| EM2B-1.000-1.500 | 1.0000 | 1.0" | +0.0" / -.002" | 30 DEG | YES | 1.0" | h6 | 1.5000 | 4.0" | $336.50 | $185.08 | |
| EM2B-1.000-2.25-5.0 | 1.0000 | 1.0" | +0.0" / -.002" | 30 DEG | YES | 1.0" | h6 | 2.2500 | 5.0" | $713.83 | $392.61 | |
| EM2B-1.000-3.0-6.0 | 1.0000 | 1.0" | +0.0" / -.002" | 30 DEG | YES | 1.0" | h6 | 3.0000 | 6.0" | $799.38 | $439.66 | |
