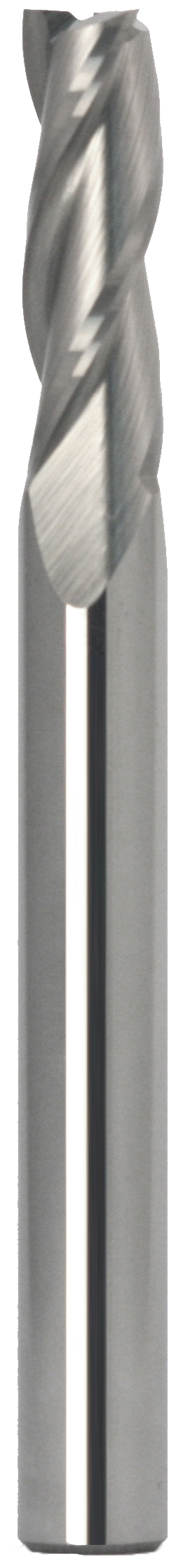

3 Flute "Long Flute" Carbide Fractional EndMill-Square Cut(EM3L SERIES)
| Note on Inventory and Delivery: 3 Flute Endmills are not always Stocked Items and Shipping is not always Immediate | ||||||||||||
ITEM NUMBER |
CUT DIA |
CUTTING DIA |
DIA TOL |
HELIX | MARGIN | SHANK DIA |
SHANK | FLUTE LENGTH |
OVERALL LENGTH |
SINGLE PRICE |
YOUR PRICE |
IMAGE |
EM3L SERIES |
(FRAC) | (INCH) |
(INCH) | ANGLE | RELIEF | (INCH) |
TOL | (INCH) |
(INCH) |
US$ |
US$ |
 |
EM3L-0156-0312-B |
1/64" | 0.0156 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.0312 |
1 1/2" |
$23.48 |
$11.74 | |
EM3L-0156-0469 |
1/64" | 0.0156 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.0469 |
1 1/2" |
$NA |
$NA |
|
EM3L-0312-1250-B |
1/32" | 0.0312 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.1250 |
1 1/2" |
$14.75 |
$10.00 | |
EM3L-0469-1250-B |
3/64" | 0.0469 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.1250 |
1 1/2" |
$14.75 |
$10.00 | |
EM3L-0469-1562 |
3/64" | 0.0469 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.1562 |
1 1/2" |
$NA |
$NA |
|
EM3L-0625-2500-B |
1/16" | 0.0625 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.2500 |
1 1/2" |
$14.75 |
$10.00 | |
EM3L-0625-2750 |
1/16" | 0.0625 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.2750 |
1 1/2" |
$NA |
$NA |
|
EM3L-0781-2500-B |
5/64" | 0.0781 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.2500 |
1 1/2" |
$14.75 |
$10.00 | |
EM3L-0938-2813-B |
3/32" | 0.0938 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.3750 |
1 1/2" |
$14.75 |
$10.00 | |
EM3L-0938-3750 |
3/32" | 0.0938 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.3750 |
1 1/2" |
$14.75 |
$10.00 | |
EM3L-1094-2188 |
7/64" | 0.1094 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.2188 |
1 1/2" |
$39.70 |
$19.85 | |
EM3L-1094-3750 |
7/64" | 0.1094 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.3750 |
1 1/2" |
$14.75 |
$10.00 | |
EM3L-1250-3750 |
1/8" | 0.1250 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.3750 |
1 1/2" |
$12.56 |
$10.00 | |
EM3L-1250-5000 |
1/8" | 0.1250 |
+ /- 0.0003" | 30 DEG | YES | 1/8" |
h5 | 0.5000 |
1 1/2" |
$12.56 |
$10.00 | |
Return to EndMill Menu
Thursday, November 07, 2024
To Request a Printed Price List, Quotation, Special Tooling Information, Special Tooling Quote or Additional Information, send us an email from this web page at the address below. Please include your Name, Company, Address, City, State, Zip, Telephone Number and Fax Number in the email and we will send you the requested information.
