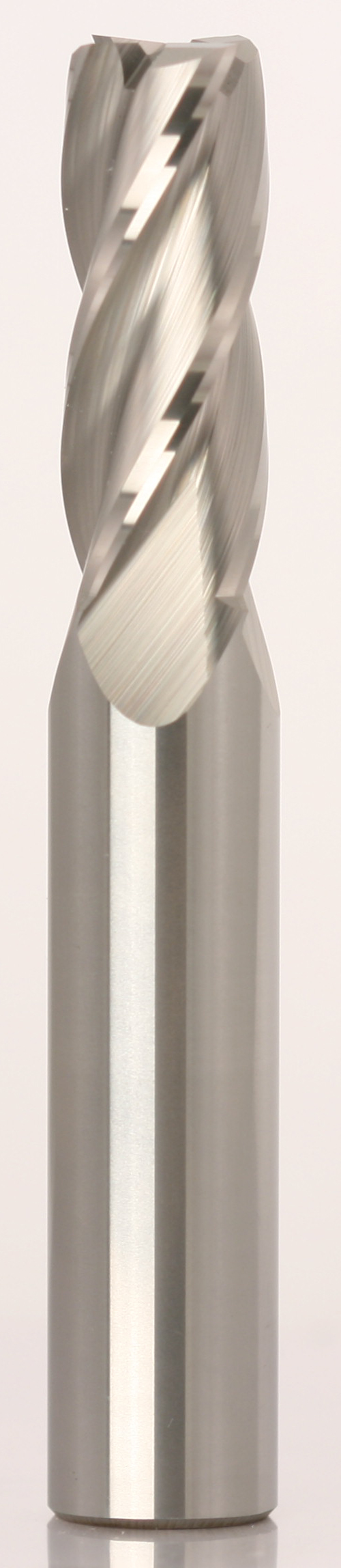

| DRILL TECHNOLOGY FRACTIONAL 4 FLUTE SQUARE END ENDMILLS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Note on Inventory and Delivery: Endmills over 1/8" diameter are not Usually in stock and deliveries can be delayed | ||||||||||||
|
MODEL NUMBER |
CUTTING DIA (INCH) |
CUTTING DIA (FRAC) |
DIA TOL |
HELIX ANGLE |
MARGIN RELIEF |
SHANK DIA (INCH) |
SHK TOL |
FLUTE LENGTH (INCH) |
OAL (INCH) |
LIST PRICE US$ |
YOUR PRICE US$ |
IMAGE |
| EM4S-0156-0234-B | 0.0156 | 1/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.0234 | 1 1/2" | $29.26 | $16.09 |
|
| EM4-0156-0469- | 0.0156 | 1/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.0469 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0156-0625- | 0.0156 | 1/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.0625 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0156-0938- | 0.0156 | 1/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.0938 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0156-1250- | 0.0156 | 1/64" | + /- 0.0003"" | 30 DEG | YES | 1/8" | h5 | 0.0312 | 1-1/2" | $23.48 | $11.74 | |
| EM4S-0312-0625-B | 0.0312 | 1/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.0625 | 1 1/2" | $14.46 | $10.25 | |
| EM4-0312-0938- | 0.0312 | 1/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.0938 | 1-1/2" | $14.74 | $7.75 | |
| EM4-0312-1250- | 0.0312 | 1/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1250 | 1-1/2" | $14.74 | $7.75 | |
| EM4-0312-1410- | 0.0312 | 1/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1410 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0312-1563- | 0.0312 | 1/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1563 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0312-1875- | 0.0312 | 1/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0312-2500- | 0.0312 | 1/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0312-3750- | 0.0312 | 1/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0312-5000- | 0.0312 | 1/32" | + /- 0.0003"" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1-1/2" | $39.70 | $19.85 | |
| EM4S-0469-0938-B | 0.0469 | 3/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.0938 | 1 1/2" | $14.46 | $10.25 | |
| EM4-0469-1250- | 0.0469 | 3/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1250 | 1-1/2" | $14.74 | $9.00 | |
| EM4-0469-1875- | 0.0469 | 3/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1-1/2" | $14.74 | $7.75 | |
| EM4-0469-2500- | 0.0469 | 3/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0469-3750- | 0.0469 | 3/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0469-4000- | 0.0469 | 3/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.4000 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0469-5000- | 0.0469 | 3/64" | + /- 0.0003"" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1-1/2" | $39.70 | $19.85 | |
| EM4S-0625-1250-B | 0.0625 | 1/16" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1250 | 1 1/2" | $14.46 | $10.25 | |
| EM4-0625-1875- | .0625 | 1/16" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1-1/2" | $14.74 | $7.75 | |
| EM4-0625-2500- | 0.0625 | 1/16" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1-1/2" | $14.74 | $7.75 | |
| EM4-0625-3125- | .0625 | 1/16" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3125 | 1-1/2" | $22.75 | $11.38 | |
| EM4-0625-3500- | .0625 | 1/16" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3500 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0625-3750- | .0625 | 1/16" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0625-5000- | .0625 | 1/16" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1-1/2" | $39.70 | $19.85 |
|
| EM4-0625-6250- | .0625 | 1/16" | + /- 0.0003"" | 30 DEG | YES | 1/8" | h5 | 0.6250 | 1-1/2" | $45.65 | $22.83 | |
| EM4S-0781-1250-B | 0.0781 | 5/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1250 | 1 1/2" | $14.46 | $10.25 | |
| EM4-0781-1563- | .0781 | 5/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1563 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0781-1875- | .0781 | 5/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0781-2500- | 0.0781 | 5/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1-1/2" | $14.74 | $7.75 | |
| EM4-0781-3125- | .0781 | 5/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3125 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0781-3750- | .0781 | 5/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0781-5000- | .0781 | 5/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0781-5500- | .0781 | 5/64" | + /- 0.0003"" | 30 DEG | YES | 1/8" | h5 | 0.5500 | 1-1/2" | $39.70 | $19.85 | |
| EM4S-0938-1875-B | 0.0938 | 3/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1 1/2" | $14.46 | $10.25 | |
| EM4-0938-2500- | .0938 | 3/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1-1/2" | $22.75 | $11.38 | |
| EM4-0938-2810- | .0938 | 3/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.2810 | 1-1/2" | $14.74 | $7.75 | |
| EM4-0938-3125- | .0938 | 3/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3125 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0938-3750- | 0.0938 | 3/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1-1/2" | $14.74 | $7.75 | |
| EM4-0938-5000- | .0938 | 3/32" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1-1/2" | $39.70 | $19.85 | |
| EM4-0938-6250- | .0938 | 3/32" | + /- 0.0003"" | 30 DEG | YES | 1/8" | h5 | 0.6250 | 1-1/2" | $39.70 | $19.85 | |
| EM4S-1094-1875-B | 0.1094 | 7/67" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1 1/2" | $14.46 | $10.25 | |
| EM4-1094-2188- | .1094 | 7/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.2188 | 1-1/2" | $39.70 | $19.85 | |
| EM4-1094-3750- | 0.1094 | 7/64" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1-1/2" | $14.74 | $7.75 | |
| EM4-1094-5000- | .1094 | 7/64" | + /- 0.0003"" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1-1/2" | $39.70 | $19.85 | |
| EM4-1250-1875- | .1250 | 1/8" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.1875 | 1-1/2" | $14.74 | $7.75 | |
| EM4S-1250-2500-B | 0.1250 | 1/8" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.2500 | 1 1/2" | $14.46 | $10.25 | |
| EM4-1250-3125- | .1250 | 1/8" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3125 | 1-1/2" | $22.75 | $11.38 | |
| EM4-1250-3750- | .1250 | 1/8" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.3750 | 1-1/2" | $12.56 | $7.75 | |
| EM4-1250-5000- | 0.1250 | 1/8" | + /- 0.0003" | 30 DEG | YES | 1/8" | h5 | 0.5000 | 1-1/2" | $12.56 | $6.28 | |
| EM4-1250-6250- | .1250 | 1/8" | + /- 0.0003"" | 30 DEG | YES | 1/8" | h5 | 0.6250 | 1-1/2" | $39.70 | $19.85 |
|
| EM4-1410-5625-2.0 | 0.1406 | 9/64" | 30 DEG | YES | 1/8" | 0.5625 | 2.0" | $20.62 | $10.31 | |||
| EM4S-1563-3125-B | 0.1563 | 5/32" | 30 DEG | YES | 1/8" | 0.3125 | 2.0" | $18.56 | $9.28 | |||
| EM4-1563-3750-2.0- | .1563 | 5/32" | 30 DEG | YES | 1/8" | 0.3750 | 2.0" | $40.45 | $20.23 | |||
| EM4-1563-5625-2.0 | 0.1563 | 5/32" | 30 DEG | YES | 1/8" | 0.5625 | 2.0" | $20.62 | $10.31 | |||
| EM4-1563-6250-2.0- | .1563 | 5/32" | 30 DEG | YES | 1/8" | 0.6250 | 2.0" | $40.45 | $20.23 | |||
| EM4S-1719-3125-B | 0.1719 | 11/64" | 30 DEG | YES | 1/8" | 0.3125 | 2.0" | $18.56 | $9.28 | |||
| EM4-1719-6250-2.0 | 0.1719 | 11/64" | 30 DEG | YES | 1/8" | 0.6250 | 2.0" | $21.15 | $10.58 | |||
| EM4S-1875-3750-B | 0.1875 | 3/16" | 30 DEG | YES | 1/8" | 0.3750 | 2.0" | $18.56 | $9.28 | |||
| EM4-1875-6250-2.0 | 0.1875 | 3/16" | 30 DEG | YES | 1/8" | 0.6250 | 2.0" | $21.15 | $10.58 | |||
| EM4-2031-6250-2.5 | 0.2031 | 13/64" | 30 DEG | YES | 1/4" | 0.6250 | 2-1/2" | $25.94 | $12.97 | |||
| EM4S-2188-4375-B | 0.2188 | 7/32" | 30 DEG | YES | 1/4" | 0.4375 | 2.0" | $21.23 | $10.62 | |||
| EM4-2188-6250-2.5 | 0.2188 | 7/32" | 30 DEG | YES | 1/4" | 0.6250 | 2-1/2" | $25.94 | $12.97 | |||
| EM4-2344-7500-2.5 | 0.2344 | 15/64" | 30 DEG | YES | 1/4" | 0.7500 | 2-1/2" | $27.17 | $13.59 | |||
| EM4S-2500-5000-B | 0.2500 | 1/4" | 30 DEG | YES | 1/4" | 0.5000 | 2.0" | $21.23 | $10.62 | |||
| EM4-2500-7500-2.5 | 0.2500 | 1/4" | 30 DEG | YES | 1/4" | 0.7500 | 2-1/2" | $27.17 | $13.59 | |||
| EM4-2656-7500-2.5 | 0.2656 | 17/64" | 30 DEG | YES | 5/16" | 0.7500 | 2-1/2" | $31.10 | $15.55 | |||
| EM4-2813-7500-2.5 | 0.2813 | 9/32" | 30 DEG | YES | 5/16" | 0.7500 | 2-1/2" | $31.10 | $15.55 | |||
| EM4-2969-8125-2.5 | 0.2969 | 19/64" | 30 DEG | YES | 5/16" | 0.8125 | 2-1/2" | $32.33 | $16.17 | |||
| EM4S-3125-5000-B | 0.3125 | 5/16" | 30 DEG | YES | 5/16" | 0.5000 | 2.0" | $28.44 | $14.22 | |||
| EM4-3125-8125-2.5 | 0.3125 | 5/16" | 30 DEG | YES | 5/16" | 0.8125 | 2-1/2" | $32.33 | $16.17 | |||
| EM4-3281-1.00-2.5 | 0.3281 | 21/64" | 30 DEG | YES | 3/8" | 1.0000 | 2-1/2" | $40.93 | $20.47 | |||
| EM4-3438-1.00-2.5 | 0.3438 | 11/32" | 30 DEG | YES | 3/8" | 1.0000 | 2-1/2" | $40.93 | $20.47 | |||
| EM4-3594-1.00-2.5 | 0.3594 | 23/64" | 30 DEG | YES | 3/8" | 1.0000 | 2-1/2" | $40.93 | $20.47 | |||
| EM4S-3750-6250-B | 0.3750 | 3/8" | 30 DEG | YES | 3/8" | 0.6250 | 2.0" | $37.59 | $18.80 |
|
||
| EM4-3750-1.00-2.5 | 0.3750 | 3/8" | 30 DEG | YES | 3/8" | 1.0000 | 2-1/2" | $40.93 | $20.47 | |||
| EM4-3906-1.00-2.75 | 0.3906 | 24/64" | 30 DEG | YES | 7/16" | 1.0000 | 2-3/4" | $61.84 | $30.92 | |||
| EM4-4063-1.00-2.75 | 0.4063 | 13/32" | 30 DEG | YES | 7/16" | 1.0000 | 2-3/4" | $61.84 | $30.92 | |||
| EM4-4219-1.00-2.75 | 0.4219 | 27/64" | 30 DEG | YES | 7/16" | 1.0000 | 2-3/4" | $61.84 | $30.92 | |||
| EM4S-4375-6250-B | 0.4375 | 7/16" | 30 DEG | YES | 7/16" | 0.6250 | 2 1/2" | $53.13 | $26.57 | |||
| EM4-4375-1.00-2.75 | 0.4375 | 7/16" | 30 DEG | YES | 7/16" | 1.0000 | 2-3/4" | $61.84 | $30.92 | |||
| EM4-4531-1.00-3.00 | 0.4531 | 29/64" | 30 DEG | YES | 1/2" | 1.0000 | 3.0" | $73.90 | $36.95 | |||
| EM4-4688-1.00-3.00 | 0.4688 | 15/32" | 30 DEG | YES | 1/2" | 1.0000 | 3.0" | $73.90 | $36.95 | |||
| EM4-4844-1.00-3.00 | 0.4844 | 31/64" | 30 DEG | YES | 1/2" | 1.0000 | 3.0" | $73.90 | $36.95 | |||
| EM4S-5000-6250-B | 0.5000 | 1/2" | 30 DEG | YES | 1/2" | 0.6250 | 2 1/2" | $68.15 | $34.08 | |||
| EM4-5000-1.00-3.00 | 0.5000 | 1/2" | 30 DEG | YES | 1/2" | 1.0000 | 3.0" | $73.90 | $36.95 | |||
| EM4-5625-1.125-3.50 | 0.5625 | 9/16" | 30 DEG | YES | 9/16" | 1.1250 | 3-1/2" | $147.95 | $73.98 | |||
| EM4S-6250-7500-B | 0.6250 | 5/8" | 30 DEG | YES | 5/8" | 0.7500 | 3.0" | $148.42 | $74.21 | |||
| EM4-6250-1.250-3.50 | 0.6250 | 5/8" | 30 DEG | YES | 5/8" | 1.2500 | 3-1/2" | $165.64 | $82.82 | |||
| EM4-6875-1.375-4.00 | 0.6875 | 11/16" | 30 DEG | YES | 3/4" | 1.3750 | 4.0" | $244.48 | $122.24 | |||
| EM4S-7500-1.00-B | 0.7500 | 3/4" | 30 DEG | YES | 3/4" | 1.0000 | 3.0" | $218.15 | $109.08 | |||
| EM4-7500-1.500-4.00 | 0.7500 | 3/4" | 30 DEG | YES | 3/4" | 1.5000 | 4.0" | $244.48 | $122.24 | |||
| EM4-8750-1.500-4.00 | 0.8750 | 7/8" | 30 DEG | YES | 7/8" | 1.5000 | 4.0" | $423.32 | $211.66 | |||
| EM4S-1.00-1.00-B | 1.0000 | 1.00" | 30 DEG | YES | 1.000" | 1.0000 | 3.0" | $386.72 | $193.36 | |||
| EM4-1.00-1.500-4.00 | 1.0000 | 1.00" | 30 DEG | YES | 1.0" | 1.5000 | 4.0" | $433.05 | $216.53 | |||
